Flush and Fill Machines

Data Sheet 35l

Data Sheet 100l

Designed by Spire Renewables

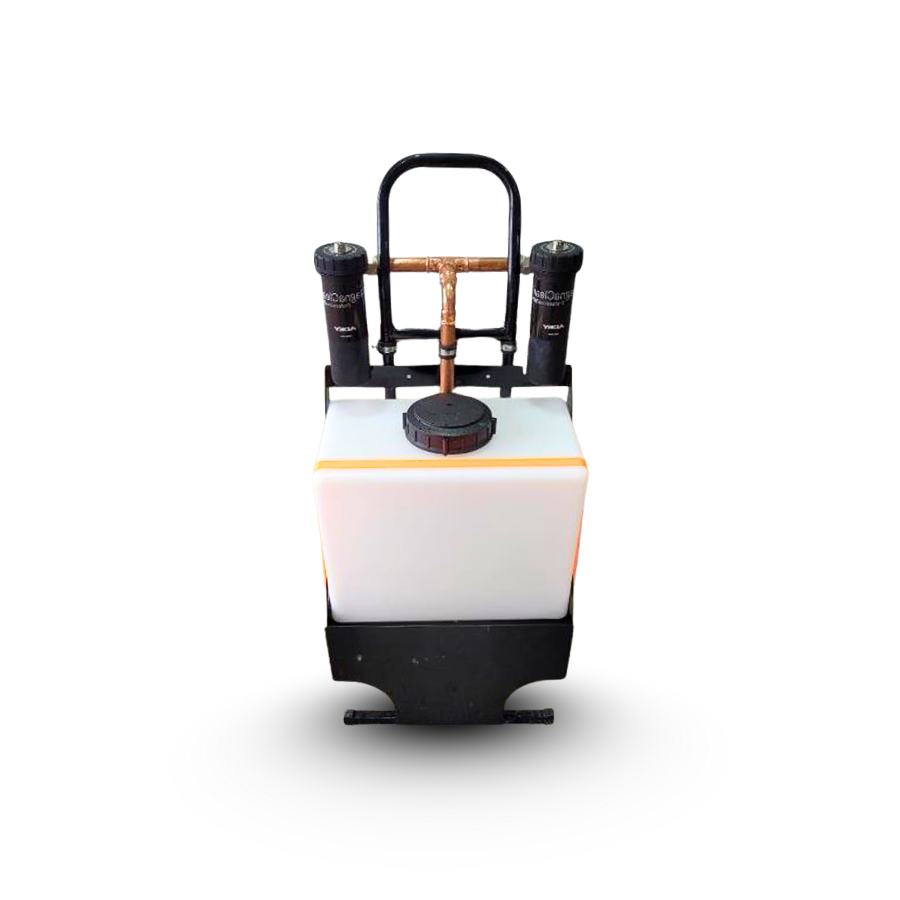

Flush & Fill³? with MAGNACLEAN. (35 litre)
For Air Source Heat Pump Systems, Underfloor Heating & Solar.
Flushing Machine with Advanced Filtration System.

Flush & Fill¹?? (100 litre)
Ground Source Heat Pump Filling Machine.

The Flush & Fill is a robust heavy duty machine for fast and easy filling, flushing and venting of closed systems. The large particle filter and pair of Adey MAGNACLEAN Professional XP2 filters clean even the dirtiest of heating system quickly and easily.

• Ideal for underfloor heating, solar thermal and the purging of air and dosing of glycol/inhibitor in Air Source Heat Pump systems.
• High volume pump has a controllable flow rate of up to 35 litres per minute and up to 2Bar maximum pressure.
• Rated for fuel transfer this makes the pump the ideal tool for liquids including heat transfer liquids, frost protections liquids, water and small diameter suspensions.
• Robust construction makes it suitable for all site applications.

The Flush & Fill³? is a compact machine with dimensions 600mmW, 1200mmH and 600mmD. It will pass through standard doorways and fits upright in the smallest of vans.

The pump is mounted on anti-vibration mounts with a sturdy tubular steel frame and 2 solid tyres for ease of movement over rough ground.

The Flush & Fill¹?? is specifically designed for the purging of air and dosing of glycol/inhibitor in Commercial & Domestic Ground Source Heat Pump systems.

Also be suitable for use on conventional larger Commercial Heating systems.

The Flush & Fill35 is a robust heavy duty machine for fast and easy filling, flushing and venting of closed systems.

The large particle filter and pair of Adey Magnaclean Professional XP2 filters clean even the dirtiest of heating system quickly and easily.

Ideal for underfloor heating, solar thermal and the purging of air and dosing of glycol/inhibitor in Air Source Heat Pump systems.

High volume pump has a controllable flow rate of up to 35litres per minute and up to 2Bar maximum pressure.

Rated for fuel transfer, this makes the pump the ideal tool for liquids including heat transfer liquids, frost protections liquids, water and small diameter suspensions.

Robust construction makes it suitable for all site applications.

The Flush & Fill35 is a compact machine with dimensions 600mmW, 1200mmH and 600mmD, able to pass through standard doorways and fit upright in the smallest of vans.

The pump is mounted on anti-vibration mounts with a sturdy tubular steel frame and 2 solid tyres for ease of movement over rough ground.

The lightweight machine is supplied complete with the following:
Heavy duty glycol suitable transfer pump, 50litre plastic tank with wide filling mouth; 2 x Magnaclean XP2 Magnetic filters, Isolatable mechanical strainer and quarter turn ball valves; Hose 2 x 4m 3/4” filling hoses and 1 x 8m dump hose for removal of dirty water (the hoses come fitted with high specification brass fittings for quick connection and release).

600mmW, 1200mmH and 600mmD.

Dimensions will vary depending on the design.

The Flush & Fill35 is a robust heavy duty machine for fast and easy filling, flushing and venting of closed systems.

The large particle filter and pair of Adey Magnaclean Professional XP2 filters clean even the dirtiest of heating system quickly and easily.

Ideal for underfloor heating, solar thermal and the purging of air and dosing of glycol/inhibitor in Air Source Heat Pump systems.

High volume pump has a controllable flow rate of up to 35litres per minute and up to 2Bar maximum pressure.

Rated for fuel transfer, this makes the pump the ideal tool for liquids including heat transfer liquids, frost protections liquids, water and small diameter suspensions.

Robust construction makes it suitable for all site applications.

The Flush & Fill35 is a compact machine with dimensions 600mmW, 1200mmH and 600mmD, able to pass through standard doorways and fit upright in the smallest of vans.

The pump is mounted on anti-vibration mounts with a sturdy tubular steel frame and 2 solid tyres for ease of movement over rough ground.

The lightweight machine is supplied complete with the following:
Heavy duty glycol suitable transfer pump, 50litre plastic tank with wide filling mouth; 2 x Magnaclean XP2 Magnetic filters, Isolatable mechanical strainer and quarter turn ball valves; Hose 2 x 4m 3/4” filling hoses and 1 x 8m dump hose for removal of dirty water (the hoses come fitted with high specification brass fittings for quick connection and release).
